Product Description

The Powerline 500 WiFi Access Point creates a high speed WiFi N access point at any power outlet in your home. It offers easy, plug-and-play setup and provides ultra fast WiFi Internet coverage, going through the walls and the floors, for the most demanding applications. It is ideal for connecting iPads, smart phones, tablets and laptops to the Internet throughout your home.

Extends Your Internet Connection

Create a high speed WiFi N access point at any power outlet

Extend WiFi coverage across walls and floors for Internet access

Ideal to connect tablets, smartphones and laptops to Internet

The NETGEAR Difference – XWNB5201

• WiFi N Access Point via 500 Mbps Powerline technology
• Compact and elegant design to fit with your surroundings
• Automatic push button wireless setup
• Extra Ethernet ports for optimum wired connection
• Energy-saving features
• Best-in-class performance and reliability

Features

WiFi N 300 Mbps Access Point – Extend high speed Internet access throughout your home walls and floors,via 500 Mbps Powerline technology, for wireless devices like tablets, laptops and Wi-Fi enabled smartphones

Ethernet port – Extra Ethernet port for optimum wired connection

Nano format – Compact and elegant design to fit with your surroundings

Plug-and-play – Sets up in minutes, no configuration needed with Internet modem/gateway, no software to install

High-speed connections – Optimum speed to enable high speed Internet applications such such as multiplayer gaming,Smart TV for HD video over YouTube and ultra fast Internet surfing on tablets

Push ‘N’ Connect button – Ensures a quick and secure wireless network connection with any client (WPS)

Push-and-Secure button – Secures the Powerline network connection with the touch of a button, no need to remember passwords

Pick-a-Plug LED – Indicates the connection strength at any electrical outlet to ensure the the highest possible Powerline performance

NETGEAR Green features – Power on/off buttons, Automatic Powerline shutdown when not in use and 80% recycled packaging

Compatible Powerline Products

• Powerline 100 Mini (XAVB1201)
• Powerline 200 Mini (XAVB1301)
• Powerline 200 Nano PassThru (XAVB1601)
• Powerline 200 Nano (XAVB2101)
• Universal WiFi Range Extender – Powerline Edition (XAVNB2001)
• Powerline 500 Nano (XAVB5101)
• Add Powerline 500 Adapter (XAVB5201)
• Powerline 500 PassThru 2-port (XAVB5602)
• Powerline Music Extender (XAUB2511)

Choose the Powerline Adapter that fits your needs

Powerline 200 Nano PassThru

Powerline Music Extender

Universal WiFi Range Extender – Powerline Edition

Powerline 500 Nano PassThru 2-Port

Powerline 500 WiFi Access Point

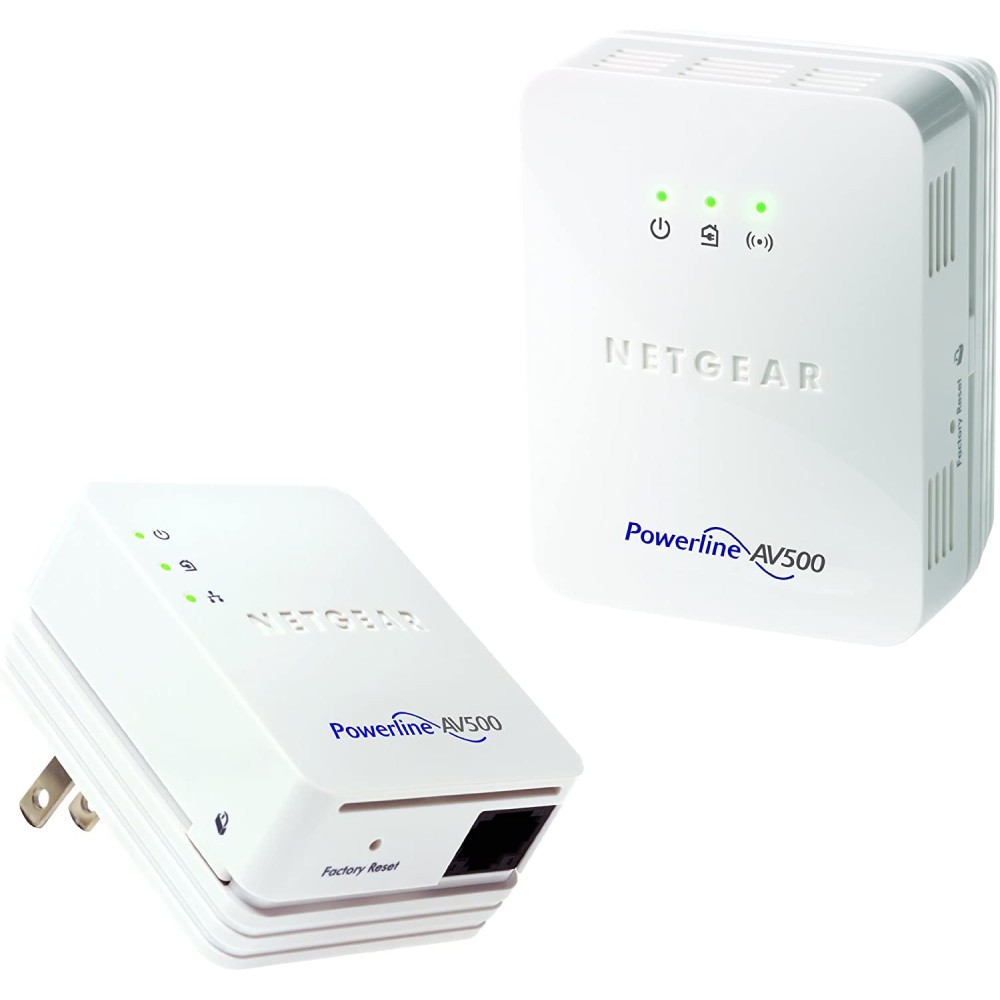

Package Contents

• One (1) Powerline 500 WiFi Access Point (XWN5001)
• One (1) Powerline 500 Nano (XAV5201)
• Two (2) 2 m (6.5 ft) Ethernet cables
• CD and documentation

Computer System Requirements

• RJ-45 Ethernet Port to connect via Ethernet cable
• 2.4 GHz 802.11 b/g/n Wireless interface to connect wirelessly to XWN5001
• Microsoft Windows 7, Vista, XP or Mac OS X to install software utility

Specifications

• IEEE 802.11 b/g/n 2.4 GHz 300 Mbps
  wireless interface

• One (1) 500 Mbps Powerline AV interface
• One (1) 10/100 Mbps Ethernet port
• Dimensions: 112 x 74 x 45 mm (4.41 x 2.91 x 1.77 in)
• Weight: 0.245 kg (0.54 lb)

• One (1) 500 Mbps Powerline AV interface
• One (1) 10/100 Mbps Ethernet port
• Dimensions: 66.8 x 54.9 x 33.8 mm
  (2.63 x 2.16 x 1.33 in)
• Weight: 82 g (0.18 lbs)
• Typical coverage up to 5000 square foot home
• HomePlug AV compliant
• IEEE 802.3 compliant
• 100-250V/2.5 – 5.0 watts
