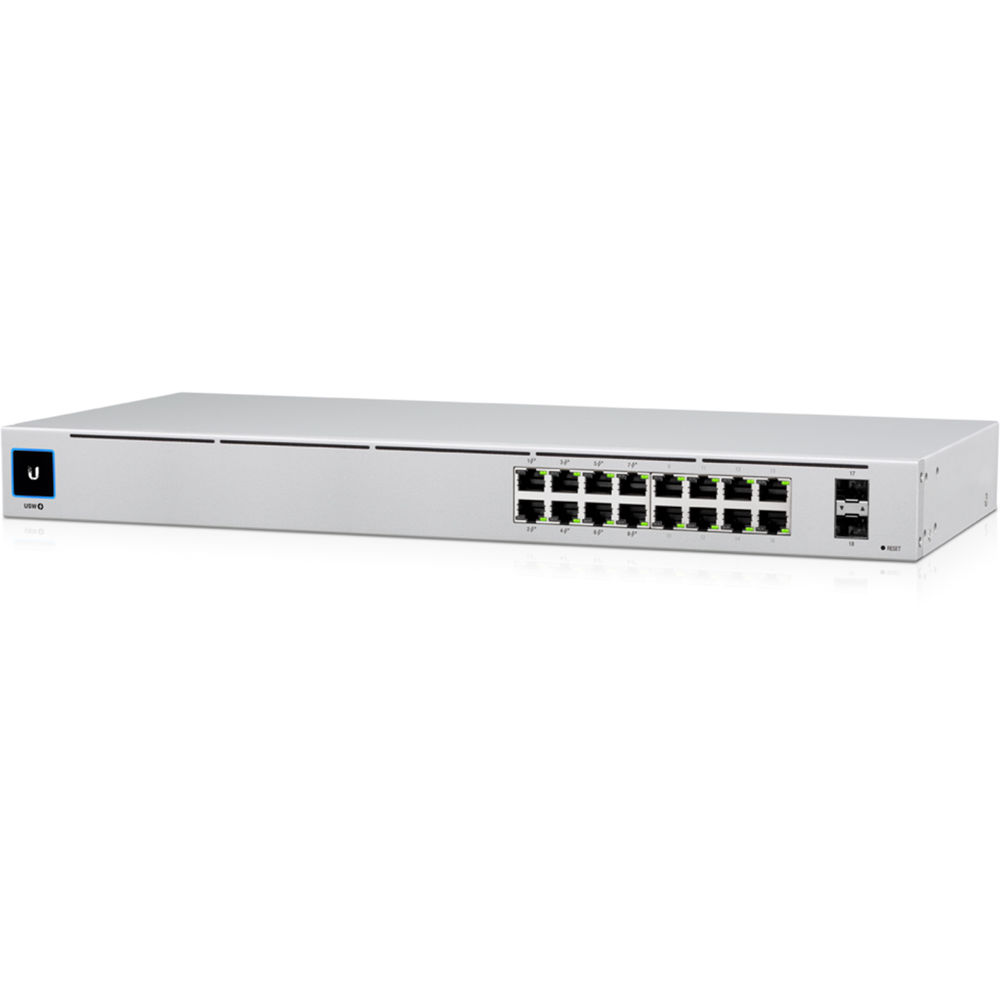

Ubiquiti Networks UniFi 16-Port Gigabit PoE+ Compliant Managed Switch with SFP
Product Description
Key Features
- 16 x Gigabit Ethernet Ports
- 8 x PoE+ Compliant Ports
- 2 x Gigabit SFP Ethernet Ports
- 36 Gb/s Switching Capacity
- 26.78 Mpps Forwarding Capacity
- Rack-Mountable Design
- 1.3" Touchscreen Display
- Passive Cooling
- UniFi Controller Support
Expand your business's network with the fully manageable UniFi 16-Port Gigabit PoE+ Complaint Managed Switch from Ubiquiti. Designed for a rack mount or desktop installation, this passively cooled 16-port Gigabit switch includes eight 32W PoE+ connectors with a total power budget of 42W to power devices such as network security cameras. Each port delivers 18 Gb/s non-blocking throughput, with a 36 Gb/s switching capacity, and a 26.78 Mpps forwarding rate. Two 1Gb SFP Ethernet Ports are available for additional expansion with compatible devices. Administrators may monitor and manage the switch with the 1.3" touchscreen display or access and configure it and connected devices using the UniFi Network Controller application.
Switching Performance
This UniFi switch offers a 26.78 Mpps forwarding capacity to simultaneously process traffic on all ports without packet loss. The UniFi PoE Switch has a non-blocking throughput of 18 Gb/s with a 36 Gb/s switching capacity.
UniFi Controller
Network Management
The UniFi Network Controller can provision UniFi devices, map networks, manage system traffic, and monitor network statistics from one interface.
Multi-Site Management
You may use a single instance of UniFi Controller running in the cloud from a centralized interface to manage multiple UniFi sites. Each site is logically separated with its own network monitoring, configuration, maps, statistics, and administrator accounts.
Switch Configuration
Access and configure any managed UniFi Switch using UniFi Controller. Its features include:
- Operation mode (switching, mirroring, or aggregate) per port
- Network/VLAN configuration
- Jumbo frame and flow control services
- Network settings
- Storm control setting per port
- Spanning tree configuration
- 802.1X control and RADIUS VLAN
- Debug terminal option for command-line interface
Switch Port Status
View the status information for each port, including:
- Connection speed and duplex mode
- TX/RX data rates
- Network/VLAN setting
Detailed Analytics
Ubiquiti's Deep Packet Inspection (DPI) engine tracks which applications and IP addresses are using the most bandwidth. Additionally, UniFi Network Controller provides configurable reporting and analytics to efficiently manage user populations and speed up troubleshooting.
Ubiquiti Networks USW-16-POE Specs
Key Specs
| Inputs/Outputs |
8x RJ45 Gigabit Ethernet |
| Stackable |
No |
| Switching Bandwidth |
18 Gb/s (Non-Blocking) |
| PoE Power Budget |
42 W |
| Stackable |
No |
Protocols
| Supported Protocols |
Port Mirroring |
Performance
| Forwarding Rate |
26.78 Mpps |
| Switching Bandwidth |
18 Gb/s (Non-Blocking) |
Electrical
| PoE per Port |
32 W |
| PoE Power Budget |
42 W |
| Power Draw |
18.00 W (Max) |
| Input Power |
100 to 240 VAC, 60 / 50 Hz |
| Power Supply Type |
Internal |
General
| Certifications |
CE, FCC, IC |
| Operating Conditions |
27 to 72°F / -5 to 40°C at 10 to 90% Humidity |
| Cooling System |
Passive |
| Indicator Lights |
Yes |
| Rack Mountable |
Yes 1 U |
| Dimensions |
17.42 x 7.87 x 1.72" / 442.4 x 200 x 43.7 mm |
| Weight |
6.17 lb / 2.8 kg |
Packaging Info
| Package Weight |
7.875 lb |
| Box Dimensions (LxWxH) |
20.5 x 12.1 x 4.8" |
