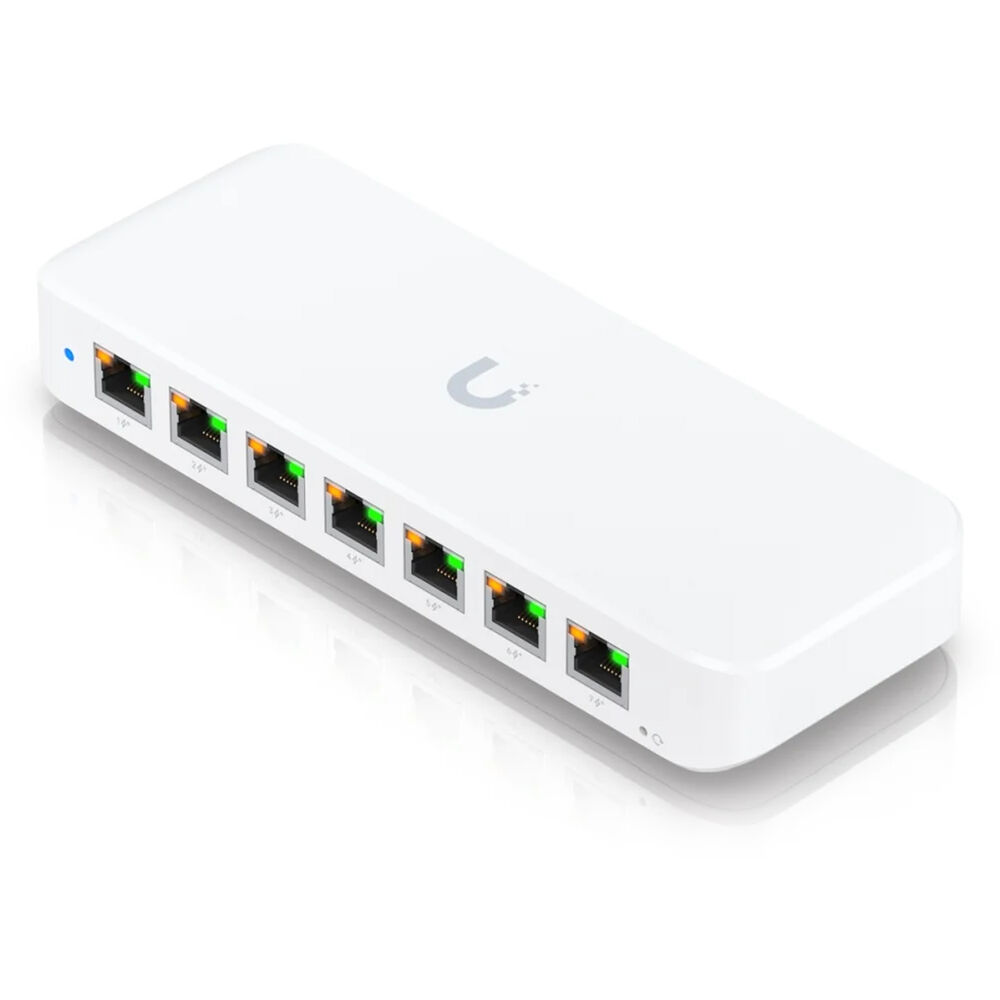

Ubiquiti Networks Ultra 60W 8-Port Gigabit PoE+ Compliant Managed Network Switch
Product Description
Key Features
- 7 x Gigabit Ethernet PoE+ Out Ports
- 1 x Gigabit Ethernet PoE++ In Port
- 16 Gb/s Switching Capacity
- Includes 60W Power Adapter
- 52W Power Budget
- Desk & Wall Mountable
- Includes Wall Mount Kit
- Passive Cooling
- Layer 2 Features
- Works with UniFi Network
Designed for high versatility, the compact Ubiquiti Ultra 60W Managed Network Switch discreetly mounts onto a desktop or wall to operate powered devices such as IP cameras, VoIP phones, and access points. Seven of its Gigabit Ethernet ports support up to 30W PoE+ output with a total budget of 52W when using the included 60W AC power adapter. Alternatively, connecting the PoE++ input to a compatible power source provides a 42W budget.
With a 16 Gb/s (8 Gb/s non-blocking) switching capacity, this Layer 2 switch provides smooth and reliable data transfers. Its fanless design allows it to operate silently in the background of your office.
PoE Budget Configurations
- PoE++ input: 42W
- PoE+ input: 16W
- 60W PoE adapter input: 42W
- 60W AC adapter input: 52W
- 210W AC adapter input: 202W
Note:
202W budget is available with up to 113°F operating temperature. Budget reduces to 161W or 121W at 140°F.
Layer 2 Features
- Port isolation
- Storm control
- Port mirroring
- Multicast / broadcast rate limiting
- Flow control
- Jumbo frames
- Egress rate limit
Ubiquiti Networks USW-ULTRA-60W Specs
Key Specs
| Inputs/Outputs |
7x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) |
| Stackable |
No |
| Switching Bandwidth |
8 Gb/s (Non-Blocking) |
| PoE Power Budget |
52 W |
| Stackable |
No |
Protocols
| Layer Services Supported |
Layer 2 |
| Supported Protocols |
Port Mirroring |
Security
| Security Features |
Storm Control |
Performance
| Switching Bandwidth |
8 Gb/s (Non-Blocking) |
Electrical
| PoE per Port |
30 W |
| PoE Power Budget |
52 W |
| Power Draw |
8.0 W |
| Input Power |
44 to 57 VDC |
| Power Supply Type |
External |
General
| Certifications |
FCC, CE, IC |
| Operating Conditions |
-4 to 113°F / -20 to 45°C at 10 to 90% Humidity |
| Material of Construction |
Plastic |
| Indicator Lights |
Yes |
| Rack Mountable |
No |
| Dimensions |
8 x 3 x 1.3" / 203 x 76 x 33 mm |
| Weight |
11.6 oz / 330 g |
Packaging Info
| Package Weight |
2.085 lb |
| Box Dimensions (LxWxH) |
9.8 x 5.4 x 4.5" |
