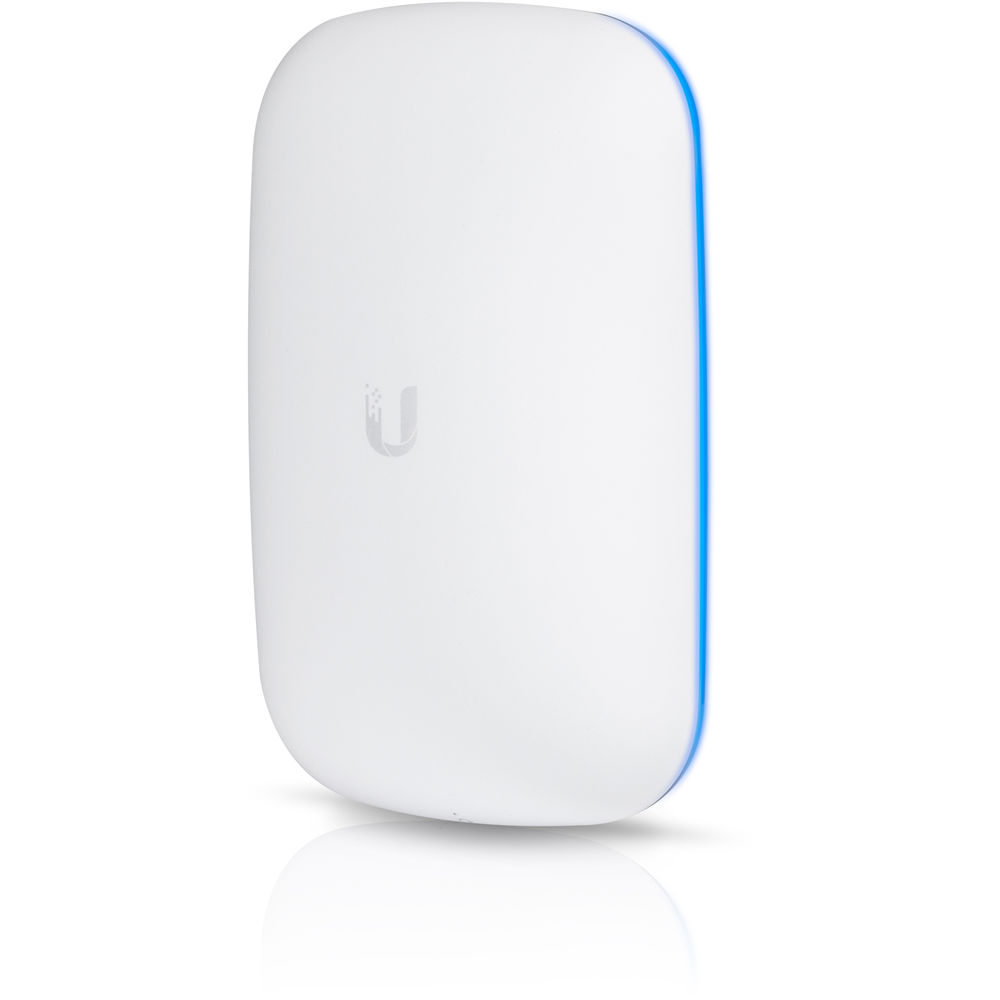

Ubiquiti UniFi AP Beacon HD UAP-BeaconHD IEEE 802.11ac 1.69 Gbit/s Wireless Access Point
Product Description
Key Features
- 802.11ac Wi-Fi Network Standard
- Up to 1.7 Gb/s Wireless Data Throughput
- Dual Band 2.4 GHz & 5 GHz Frequencies
- 2 x Internal Dual Band Antennas
- 2 x 5 dBi Internal Antennas
- 4x4 MU-MIMO Mesh Uplink
- Supports UniFi Network App
Expand the range of your 802.11ac Wave 2 network coverage across your home or office by simply plugging the UniFi UAP-Beacon HD Dual-Band Wireless Range Extender from Ubiquiti into an available wall outlet. Featuring 4 x 4 MU-MIMO capabilities to deliver up to 1.7 Gb/s to connected devices, the dual-band range extender works with a nearby UniFi Dream Machine or UniFi Access Point to boost the wireless signal through walls and other obstructions. This helps to provide fast and reliable connections while eliminating Wi-Fi dead spots. You can optimize your network by using the 5 GHz band for bandwidth-intensive activities such as video streaming and gaming while reserving the 2.4 GHz band for email and other everyday uses. The UniFi Network App and Network Management Controller software allow you to configure and manage your network, including setting up guest logins, analyzing performance, and more.
Get Rid of Dead Spots
Installing one or more UniFi UAP-Beacon HD range extender helps to overcome Wi-Fi signal loss in the far corners of homes and offices.
802.11ac Wave 2 MU-MIMO
With 802.11ac Wave 2 MU-MIMO (Multi-User, Multiple Input, Multiple Output) technology, access points can communicate with multiple devices simultaneously. Wave 2 access points are designed to perform 75% better than Wave 1 SU-MIMO (Single-User, Multiple Input, Multiple Output) devices.
4 x 4 Performance
Four internal antennas power the 4 x 4 MIMO streams to deliver high data throughput for video streaming, playing games, and transferring files locally.
UniFi Network Controller
Accessible via mobile app or web browser, the UniFi Network Controller allows you to organize and manage your network. Use it to get a detailed overview of your networked devices, optimize their performance, and to configure settings such as guest logins.
Compatibility
The UAP-Beacon HD requires a UniFi Access Point or Dream Machine network device to mesh to.
Ubiquiti Networks UAP-Beacon Specs
Key Specs
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4) |
| Throughput |
2000 Mb/s Total |
Wireless
| Wi-Fi |
Wi-Fi 5 (802.11ac); Dual-Band (2.4 & 5 GHz) with MU-MIMO Support (4 x 4) |
| Number of Antennas |
4 |
| Transmit Power |
24.8 to 30 dBm |
| Antenna Placement |
Internal |
| Throughput |
2000 Mb/s Total |
Security
| Wireless Security |
AES, TKIP, WEP, WPA-PSK, WPA-Enterprise, WPA2-Enterprise |
Hardware
| RAM |
128 MB |
| Supported IEEE Standards |
802.11ac, 802.11a, 802.11b, 802.11g, 802.11n |
Electrical
| Input Power |
100 to 240 VAC, 50 / 60 Hz at 0.3 A |
| Power Consumption |
11.5 W |
General
| Operating Conditions |
14 to 140°F / -10 to 60°C at 5 to 95% Humidity |
| Dimensions |
6.68 x 4.42 x 1.27" / 169.7 x 112.15 x 32.2 mm |
| Weight |
9.17 oz / 260 g |
Packaging Info
| Package Weight |
1.12 lb |
| Box Dimensions (LxWxH) |
7.4 x 5.8 x 2" |
