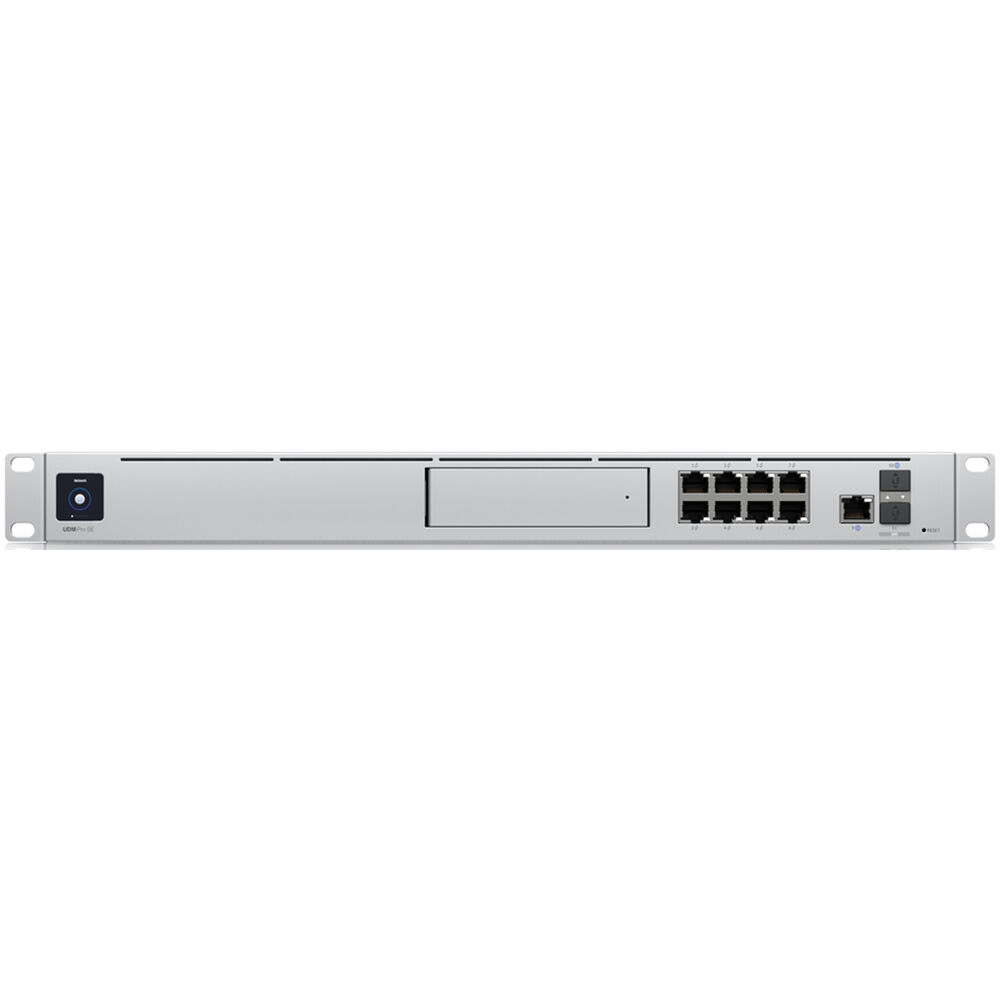

Ubiquiti Networks UniFi Dream Machine Special Edition
Product Description
Key Features
- All-in-One Enterprise Network Appliance
- Security Gateway
- 8 x Gigabit PoE | 10G SFP+
- 10G SFP+ LAN & WAN Ports
- 2.5" / 3.5" HDD Bay
- 1.7 GHz ARM Cortex-A57 Quad-Core
- 4GB DDR4 RAM | 128GB SSD
- 1 RU Rack Size
- 1.3" Touchscreen Display
- UniFi OS Integration
Streamline your small to medium business network with the UniFi Dream Machine Special Edition. This enterprise-class network device combines a dual-WAN router, security gateway, PoE-compliant network switch, and network video recorder (NVR) into a single 1 RU rack system.
Featuring both 2.5G Ethernet and 10G SFP+ fiber WAN ports, the UniFi Dream Machine Special Edition is designed to help business owners manage and scale their network connections. Its integrated security gateway offers customizable internet threat filtration and traffic identification with a 3.5 Gb/s max throughput rate. In addition to having a 10G SFP+ fiber LAN port, the built-in 8-port managed network switch includes six 15W RJ45 Ethernet ports alongside two 30W ports to deliver power and data to IP cameras and other PoE-compatible devices. Surveillance recordings may be stored on the integrated 128GB solid-state drive, and you can install a separately purchased 3.5" hard drive to increase storage capacity. You can manage your network from the UniFi OS console.
Performance
Powered by a 1.7 GHz ARM Cortex-A57 quad-core processor, 4GB of memory, and 16GB of onboard eMMC flash storage, the Dream Machine Special Edition gives you full control of all your UniFi devices, including access points, cameras, VoIP phones, and access readers.
Built-In Touchscreen
The 1.3" touchscreen displays the device's status for easy monitoring and troubleshooting.
Quick Setup
Bluetooth-powered setup via the UniFi Network web application or mobile app.
UniFi OS Integration
- Run current and future UniFi OS applications from a single interface.
- Remotely access your network from anywhere with the UniFi OS Portal.
- Tailor user, role, and group-level network use with a robust slate of management features.
Ubiquiti Networks Dream Machine Special Editi... Specs
Key Specs
| Inputs/Outputs |
2x RJ45 Gigabit Ethernet PoE+ (30 W, 802.3at) |
| Stackable |
No |
| Switching Bandwidth |
3.5 Gb/s |
| Stackable |
No |
Protocols
| Supported Protocols |
DHCP Server |
Performance
| Switching Bandwidth |
3.5 Gb/s |
Computer
| Flash Memory |
144 GB |
| CPU |
Quad-Core: Up to 1.7 GHz Cortex A57 |
| Memory |
4 GB DDR4 |
Electrical
| PoE per Port |
15.4 to 30 W |
| Power Draw |
50.00 W |
| Input Power |
100 to 240 VAC, 60 / 50 Hz at 4.4 A |
| Power Supply Type |
Internal |
General
| Certifications |
No |
| Operating Conditions |
22 to 72°F / -10 to 40°C at 5 to 95% Humidity |
| Cooling System |
Passive |
| Material of Construction |
Aluminum, Steel |
| Indicator Lights |
Yes |
| Rack Mountable |
Yes 1 U |
| Dimensions |
17.4 x 11.2 x 1.7" / 442.4 x 285.6 x 43.7 mm |
| Weight |
10.91 lb / 4.95 kg |
Packaging Info
| Package Weight |
12.465 lb |
| Box Dimensions (LxWxH) |
20.3 x 16.2 x 4.7" |
